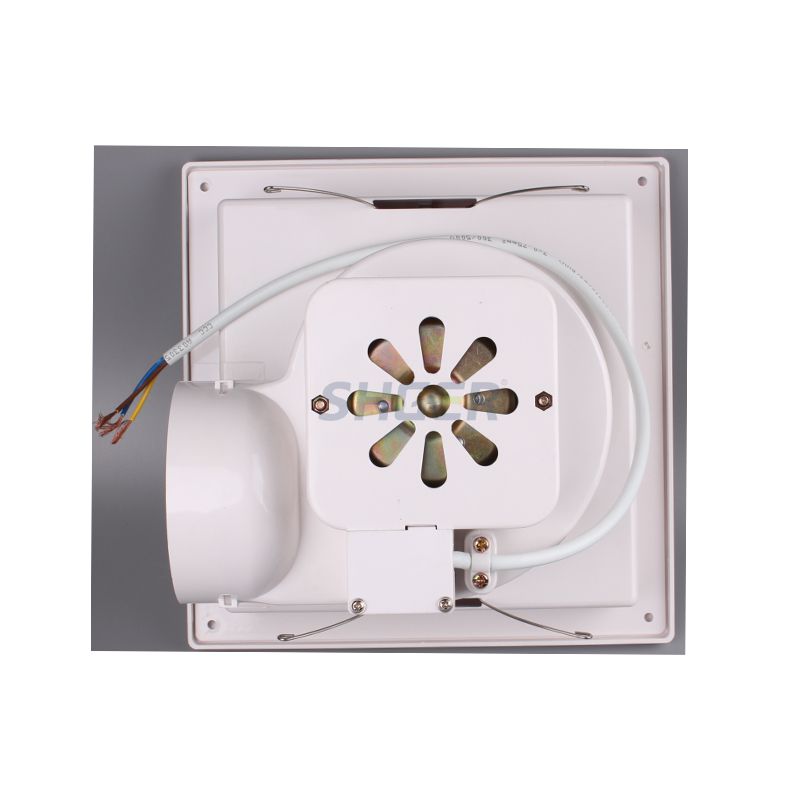

Ceiling type and Pipe type exhaust fan is applicable. Suitable for ventilation in family bathroom kitchen and other places.The product has the advantages of novel shape, beautiful appearance, unique structure, good sealing performance, large air volume, low noise, power consumption, safety and reliability. Ideal for your family.
Product details
PRODUCTION INFORMATION
| Description | 8/10/12 inch exhaust fan for kitchen with high quality ABS material with model No. RBPT12-13C1 | |||
| Panel Material | ABS material | |||
| Installation size | 20.4*20.4cm | |||
| Lifetime | 1 Years | |||
| Package | 1pcs/box, 8pcs/carton | |||
| Delivery time | 25 days after getting confirmed order | |||
| Payment | TT, LC | |||
| Seaport | Ningbo/Shanghai | |||
| MOQ | 500 PCS | |||
Main technical parameters
| Model No. | Rated Voltage | Frequency | Power | Wind | Noise |
| RBPT12-13C5 | 220V | 50HZ | 20W | 2.0m³/min | ≤35dB |
| RBPT12-13C1 | 220V | 50HZ | 20W | 2.0m³/min | ≤35dB |
| RBPT12-14B4 | 220V | 50HZ | 22W | 2.5m³/min | ≤42dB |
| RBPT12-15B3 | 220V | 50HZ | 28W | 7.0m³/min | ≤50dB |
| RBPT12-A1 | 220V | 50HZ | 33W | 5.0m³/min | ≤56dB |
| RBPT12-A2 | 220V | 50HZ | 33W | 5.0m³/min | ≤56dB |
| RBPT12-S3 | 220V | 50HZ | 18W | 3.0m³/min | ≤56dB |
Installation Dimension mm
| Model No. | Hole dimension | Mounting screw distance | Panel Size | Space Height | Pipe Size |
| RBPT12-13C5 | 204 | 222 | 250 | 165 | φ100 |
| RBPT12-13C1 | 204 | 222 | 250 | 165 | φ100 |
| RBPT12-14B4 | 230 | 240 | 270 | 170 | φ100 |
| RBPT12-15B3 | 310 | 240 | 365 | 170 | φ100 |
| RBPT12-A1 | 300 | 300 | |||
| RBPT12-A2 | 300 | 300 | |||
| RBPT12-S3 | 210 | 210 |
Quality guarantee:
Usually, it can be changed or have it repaired because of manufacturing. It is valid for 1 years.
It can not guarantee as follows:
1. It causes malfunction by users removing, not by professionals.
2. Fire or other inappropriate way,causing malfunction.
3. User should show purchasing invoice when to maintain it.
Method of installing:
① Build a wooden frame and fix it in the ceiling.
—Ceiling
② Whole body is put in the wooden frame fixed firmly with screw.
Wood frame
③ The pipe and the whole body are connected, and orifice should be sealed.
④ Switch on and be certain no abnormal phenomenon appearing,then the cover is fixed with long hole.
