Using quick connection terminal technology, Technology, Wiring does not require any tools, just insert the hard wire into the wiring hole as required, and the double-stage pressure spring can be formed to press tightly on the top and bite the wire below.
Product details
Description/Feature/Scope of Application
Product Overview:
Using quick connection terminal technology, Technology, Wiring does not require any tools, just insert the hard wire into the wiring hole as required, and the double-stage pressure spring can be formed to press tightly on the top and bite the wire below. Even if The wiring state is uniform and neat, which ensures safety and greatly reduces the construction time. Out of the wire, it can also be reconnected. Improve the reliability of construction. To remove the cable, insert the screwdriver into the cable removal hole and pull it out.
The plastic part of the functional part is all made of high-quality polycarbonate, excellent heat and pressure resistance, solid and non-flammable, and does not deform in case of heat. The conductive parts of the switch are made of brass with high conductivity, the silver points are made of silver oxidation insulating contact with melting resistance, and the coil spring of the structure is forced to open and close to achieve higher conductive capacity and longer operation The service life is more than 40,000 times.

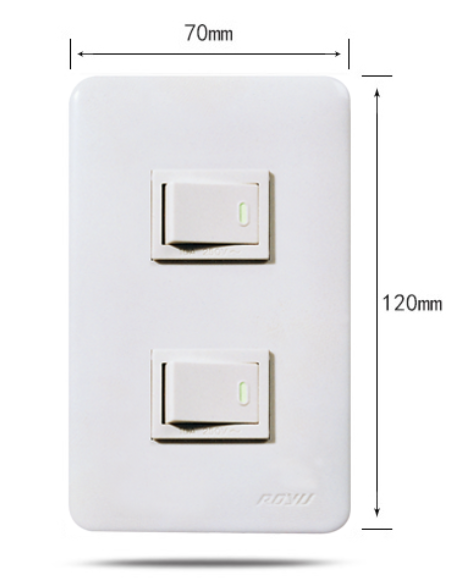

Dimensions
Technical Parameters
| Description | WD503 Double gang electrical switch |
| Panel Material | ABS material imported |
| Inside Material | All copper H62; Qsn6.5-0.1, silver contact AgCd15 |
| Power/Voltage | 10A, 250V |
| Wiring Method | screw connection |
| Colour | white, screwm Ivory or other colour as customization |
| Lifetime | 8 years |
| Package | 1pcs/plastic bag, 10pcs/inner colour box, 100PCS/CTN |
| Delivery time | 35 days after getting confirmed order |
| Payment | TT, LC |
| Sea port | Ningbo/Shanghai |
| MOQ | 1000PCS |
| Outline size | 70*120mm |
| Installation size | 83.5 |
| Material | PC |
| Copper | QSn5.6-0.1 H62 Hpb59 |
SWITCH SPECIFICATION
| Lifetime | ≥40000 |
| Heat-resistant | 100℃/1h |
| Insulation Resistance | ≥5MΩ |
| Damp Resistance | 48h>5MΩ |
| Temperature Raise | ≤45K |
| Earthing Provision | ≤0.05MΩ |
We are a professional electrical product supplier, focusing on providing high-quality electrical and industrial products. Our product line is rich and diverse, including 2 Gang Switches, Switch Sockets, Circuit Breakers, Track Sockets, Photovoltaic Accessories, Railway Spare Parts, Exhaust Fans and a range of other electrical and industrial products. We are committed to providing customers with a full range of electrical solutions through innovative and reliable products.
High-quality products: All our products are made of high-quality materials and advanced manufacturing processes to ensure high performance and durability of each product. Our products undergo strict quality control to ensure that they meet international standards and customer expectations.
Extensive product line: We offer a variety of electrical products to meet the needs of different fields such as home, commercial, and industrial. Whether it is basic electrical switches and sockets, or complex photovoltaic system accessories and railway spare parts, we can provide corresponding solutions.
Flexible customization service: We understand that the needs of each customer may be different, so we provide flexible customization services. Whether it is a switch socket with special specifications, or a customized track socket and exhaust fan, we can customize it according to the specific needs of customers.
Professional technical support: Our team has rich industry experience and expertise, and can provide technical support and solutions to customers. We are committed to helping customers solve problems encountered during use and ensure the best performance of the product.
Global service network: As an international supplier, our products are sold to many countries and regions around the world. We have a complete supply chain and logistics system to ensure that the products can be delivered to customers in a timely and safe manner.
As a professional 2 gang switch supplier, we are committed to providing customers with high-quality, reliable and innovative electrical solutions. Our rich product line and professional services make us a trusted partner of our customers. Welcome to contact us for more product information and cooperation opportunities.
